SBH330B/450B Roll Fed Square Bottom Paper Bag Machine

Request a Quote

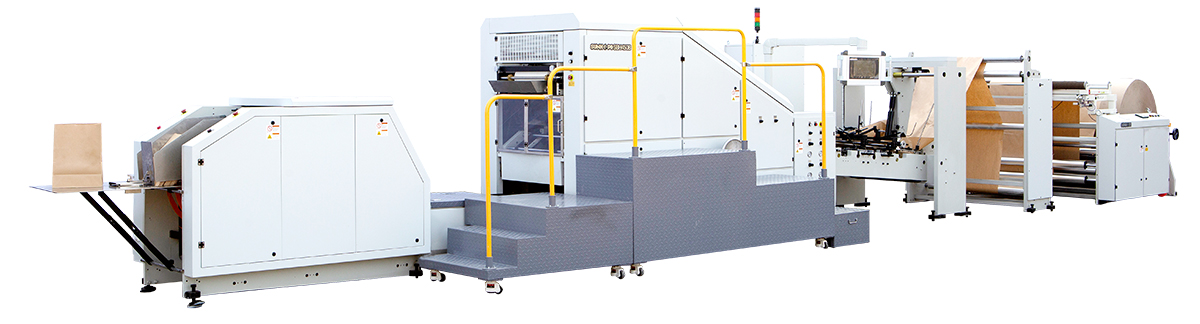

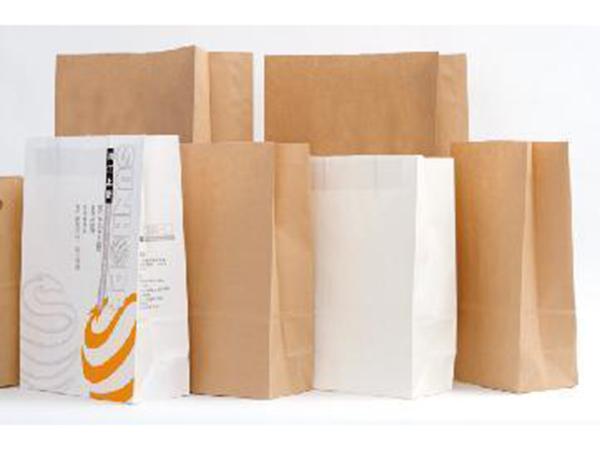

The SBH series roll fed square bottom paper bag machine is designed to manufacture square bottom paper bags from paper roll in blank or printed designs. Side gluing, tube forming, tube cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can all be completed within a single operation pass by this machine. It is ideal equipment for making paper bags for food, shopping bag and other commonly used paper bags. The machine use German machinery manufacturing technology and ideas, including a high speed movement of the central control system (CPU) control. The bag length can be adjusted by servo system, allowing the machine to create bags in various specifications. Different models (SBH330B/450B) can also have a twisted or flat handle unit added to the production line.

• Model Selection
• Model Comparison

• Model: SBH150

  Paper Thickness (gsm):

  40-150

  Tube Cut Off Length (mm):

  191-385

  Bag Face Width (mm):

  80-200

  Bag Bottom Size (mm):

  50-100

  Max. Speed (bags/min):

  250

• Model: SBH150B

  Paper Thickness (gsm):

  40-150

  Tube Cut Off Length (mm):

  191-430

  Bag Face Width (mm):

  80-200

  Bag Bottom Size (mm):

  45-100

  Max. Speed (bags/min):

  250

• Model: SBH330

  Paper Thickness (gsm):

  45-180

  Tube Cut Off Length (mm):

  280-540

  Bag Face Width (mm):

  120-330

  Bag Bottom Size (mm):

  70-150

  Max. Speed (bags/min):

  230

• Model: SBH330B

  Paper Thickness (gsm):

  50-180

  Tube Cut Off Length (mm):

  280-540

  Bag Face Width (mm):

  150-330

  Bag Bottom Size (mm):

  70-180

  Max. Speed (bags/min):

  220

• Model: SBH330BPro

  Paper Thickness (gsm):

  50-180

  Tube Cut Off Length (mm):

  280-540

  Bag Face Width (mm):

  150-330

  Bag Bottom Size (mm):

  90-180

  Max. Speed (bags/min):

  220

• Model: SBH450B

  Paper Thickness (gsm):

  70-180

  Tube Cut Off Length (mm):

  368-762

  Bag Face Width (mm):

  200-450

  Bag Bottom Size (mm):

  90-205

  Max. Speed (bags/min):

  150

• Model: SBH450C

  Paper Thickness (gsm):

  70-180

  Tube Cut Off Length (mm):

  368-762

  Bag Face Width (mm):

  200-450

  Bag Bottom Size (mm):

  120-260

  Max. Speed (bags/min):

  150

• Model: SBH550T

  Paper Thickness (gsm):

  80-150

  Tube Cut Off Length (mm):

  360-770

  Bag Face Width (mm):

  220-450

  Bag Bottom Size (mm):

  80-230

  Max. Speed (bags/min):

  150

Technical Info	SBH150	SBH150B	SBH330	SBH330B	SBH330BPro	SBH450B	SBH450C	SBH550T
Paper Roll Width (mm)	280-640	280-640	405-1050	465-1050	505-1050	610-1310	690-1310	630-1510
Paper Roll Dia. (mm)	≤1500	≤1500	≤1500	≤1500	≤1500	≤1500	≤1500	≤1500
Paper Roll Core Dia. (mm)	Φ76	Φ76	Φ76	Φ76	Φ76	Φ76	Φ76	Φ76
Paper Thickness (gsm)	40-150	40-150	45-180	50-180	50-180	70-180	70-180	80-150
Tube Cut Off Length (mm)	191-385	191-430	280-540	280-540	280-540	368-762	368-762	360-770
Bag Face Width (mm)	80-200	80-200	120-330	150-330	150-330	200-450	200-450	220-540
Bag Bottom Size (mm)	50-100	45-100	70-150	70-180	90-180	90-205	120-260	80-230
Max. Speed (bags/min)	250	250	230	220	220	150	150	150
Total Power (kW)	8.75	8.75	16.5	18.9	18.9	17.9	17.9	23.2
Machine Weight (kg)	about 5600	about 6500	about 8500	about 9000	about 9000	about 11000	about 11000	about 13500
Machine Size  (L×W×H)(m)	8.6×2.6×1.96	8.6×2.6×1.96	11.5×3.1×1.96	11.5×3.1×1.96	11.5×3.1×1.96	13×3.9×2	13×3.9×2	13×3.9×2.3
Three Types Bottom Seal	yes	yes	yes	yes	yes	yes (Two)	yes (Two)	yes (One)
Servo Lip Cut Device	yes	yes	yes	yes	yes	no	no	no
M= Servo Motorized Plate Device	no	no	no	no	no	no	no	no
Bottom Forming Drum With Vacuum Assist	no	no	yes	yes	yes	yes	yes	yes
Options Unit	DC01/DC02 Servo Window Cutting Unit (cannot be equipped on models SBH550) TM01/TM02 Servo Film Patching & Laminating Unit (cannot be equipped on models SBH550) PAV02C Die Cut Handle Patch Application Unit (cannot be equipped on models SBH550) DL01/DL02/DL03 Two Ply Unit 1-4 Colors Flexo Printing Unit Twisted Handle Making Unit Internal Flat Handle Making Unit

• The roll fed square bottom paper bag machine is equipped with a Japanese Mitsubishi servo system and SICK photocell for correction, so that users can accurate track printed material, and minimize adjustment and pre-set times.

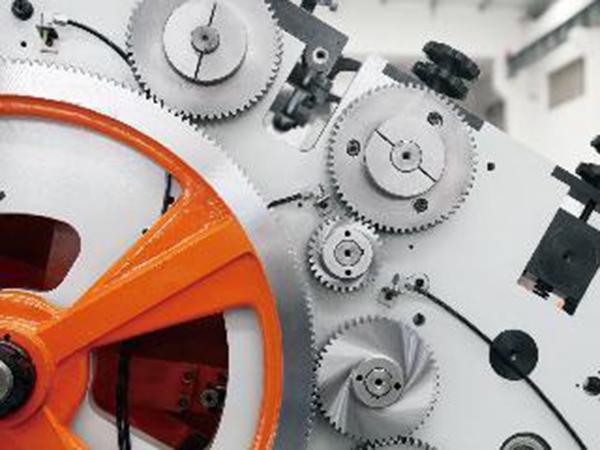

• It is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU). This achieves an integration of an optical fiber in order to achieve a high speed and high precision, motion control and production flow test. With a touch screen display, the operation functions are clear, and feature a great human to machine interface.

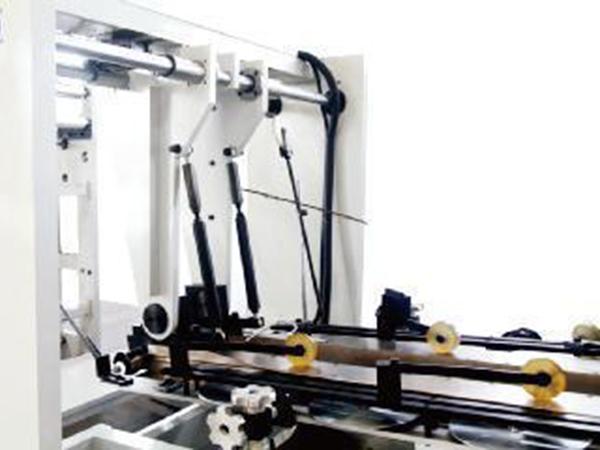

• Equipped with a tension system and automatic WEB correction system, this paper bag production machine can reduce waste and improve efficiency.

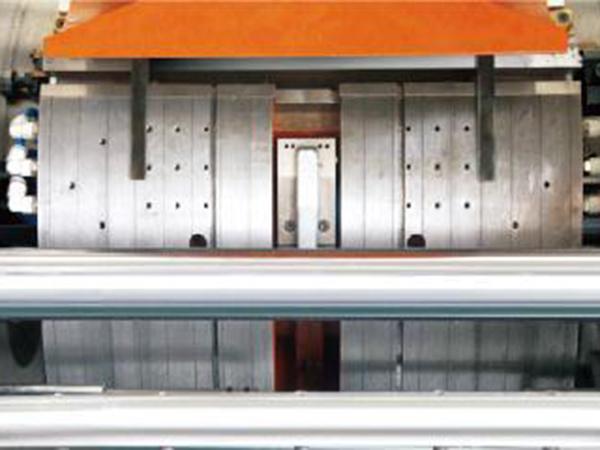

• With a servo motor adjustable forming plate, there is no need for individual formers. This also allows for a faster change between different bag sizes.
• The vacuum assisted main drum allows for better control during bag bottom formation.
