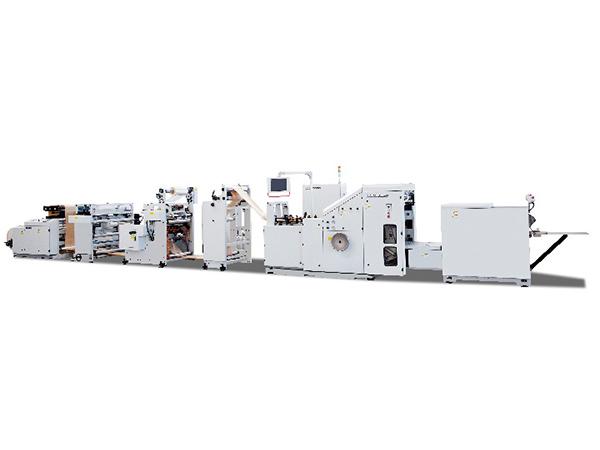

Roll-fed Block Bottom Paper Bag Machine, Flat & Satchel Paper Bag Machine
Roll-fed Block Bottom Paper Bag Machine, Flat & Satchel Paper Bag Machine

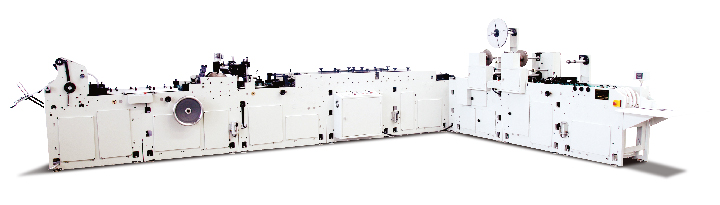

This type of machine adds the hot glue device to DHL280 Model. This envelope making machine is primarily used for making EMS, DHL, UPS, TNT and other similar envelopes. In the machine, paper is fed at the bottom, and adding the paper while the machine is operating increases the working speed. With one machine, folding, double faced adhesive coating or hot glue coating with the machine is carried out for the production for envelopes with adhesive sealing. Oil paper at the tongue closure and an easy open strip coating can be incorporated, ensuring an integrated flow process.
Bag Schematic Diagram
For product changes, without notice.
| Technical Info | DHL280 |
| Max. Mailer Size (mm) | 280×400 |
| Min. Mailer Size (mm) | 155×200 |
| Paper Weights Ca(Cardboard Paper) (gsm) | 150~300 |
| Total Power (kW) | 15.5 |
| Hot Glue Machie Power (kW) | 4 |
| Max. Speed (pcs/h) | 6000 |
| Machine Weight (kg) | 7000 |
| Machine Vertical Size ((L×W×H)m) | 6000×1400×1500 |
| Machine Horizontal Size ((L×W×H)m) | 5500×850×1500 |
