POCKET135-PS

Automatic Pocket Envelope-Making Machine (Peel & Seal) Series

The POCKET135-PS model design is based on our POCKET135 model, with an added device for peel and sealing performances and the production of 2# - 9# Chinese envelopes or Chinese seal stickers. We can also add a hot melt glue system based on customer requirements.

Major Structural Features
Using a suction method at the lower portion of the machine, blank paper that is laid on the feed plate is fed into machine. This method allows the pile of blanks to be replenished while the machine is operating, and no extra downtime. Assisted by a suction unit, the fence folding unit carries out two lateral folding processes with both a high speed and accuracy. The width of the envelope or flat bag can be reset while the machine is operating, and the rotary glue application unit meets the requirements of any envelope or flat bag by gluing along straight tracks. When the envelope or bag is discharged from the machine, clearing operations are easy. The machine is also equipped with a finished envelope and flat bag counting and batching processing thick paper unit.

Using a suction method at the lower portion of the machine, blank paper that is laid on the feed plate is fed into machine. This method allows the pile of blanks to be replenished while the machine is operating, and no extra downtime. Assisted by a suction unit, the fence folding unit carries out two lateral folding processes with both a high speed and accuracy. The width of the envelope or flat bag can be reset while the machine is operating, and the rotary glue application unit meets the requirements of any envelope or flat bag by gluing along straight tracks. When the envelope or bag is discharged from the machine, clearing operations are easy. Then, a simple, but reliable longitudinal folding unit is used to fold the two flaps. A counter then batches the finished envelopes or bags based on preset quantities.

Technical Info POCKET124-PS POCKET128-PS POCKET135-PS POCKET150-PS
Max. Envelope Size (mm) 120×240 165×240 230×350 350×500
Min. Envelope Size (mm) 50×80 80×100 110×176 229×324
Paper Weights Ca (gsm) 60-120 70-120 80-130 100-150
Machine Power (kW) 4.1 4.1 4.5 8.2
Pump 1 Power (kW) 3 3 3 3
Pump 2 Power (kW) 2.2 2.2 2.2 2.2
Max. Speed (pcs/h) 12000 12000 8000 6000
Machine Weight (kg) 2000 2200 2200 3500
Machine Size ((L×W×H)m) 3050×1000×1300 4700×1090×1720 4000×1050×1400 4800×1160×1720

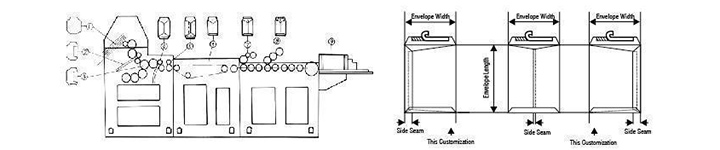

Illustration of Function

For product changes, Without notice.
