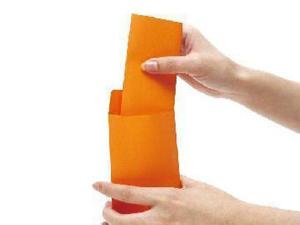

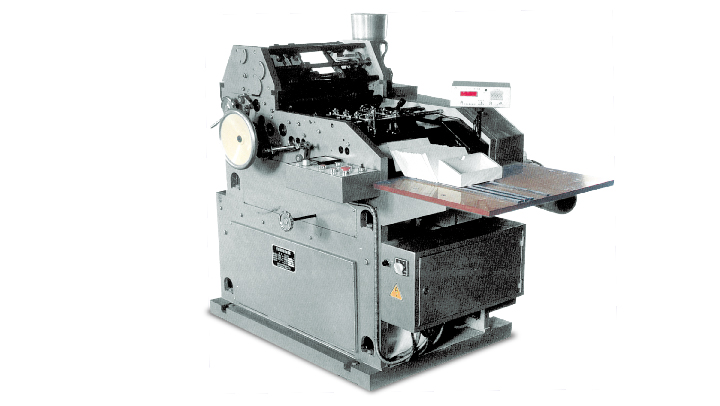

Utilizing numerous advanced techniques and construction similar to that of other traditional machines on the market today, the automatic POCKET124 pocket envelope-making machine is especially suitable for the economic production of pocket envelopes and flat bags, particularly bags used for red bag food, seed, pharmaceutical products and more.
Using a suction method at the lower portion of the machine, blank paper that is laid on the feed plate is fed into machine. This method allows the pile of blanks to be replenished while the machine is operating, and no extra downtime. Assisted by a suction unit, the fence folding unit carries out two lateral folding processes with both a high speed and accuracy. The width of the envelope or flat bag can be reset while the machine is operating, and the rotary glue application unit meets the requirements of any envelope or flat bag by gluing along straight tracks. When the envelope or bag is discharged from the machine, clearing operations are easy. Then, a simple, but reliable longitudinal folding unit is used to fold the two flaps. A counter then batches the finished envelopes or bags based on preset quantities.
| Technical Info | ||||
| Max. Envelope Size (mm) | 120×240 | 165×240 | 230×350 | 350×500 |
| Min. Envelope Size (mm) | 50×80 | 80×100 | 110×176 | 229×324 |
| Paper Weights Ca (gsm) | 60-120 | 70-120 | 80-130 | 100-150 |
| Total Power (kW) | 4.1 | 4.1 | 4.5 | 8.2 |
| Max. Speed (pcs/h) | 12000 | 12000 | 8000 | 6000 |
| Machine Weight (kg) | 1000 | 1200 | 1200 | 2500 |
| Machine Size ((L×W×H)m) | 1550×1000×1300 | 3200×1090×1720 | 2500×1050×1400 | 3300×1160×1720 |
Max. Envelope Size (mm): 120×240
Min. Envelope Size (mm): 50×80
Paper Weights Ca (gsm): 60-120
Total Power (kW):4.1
Max. Speed (pcs/h):12000
Machine Weight (kg):1000
Machine Size ((L×W×H) m): 1550×1000×1300
Max. Envelope Size (mm): 165×240
Min. Envelope Size (mm): 80×100
Paper Weights Ca (gsm):70-120
Total Power (kW):4.1
Max. Speed (pcs/h):12000
Machine Weight (kg):1200
Machine Size ((L×W×H) m): 3200×1090×1720
Max. Envelope Size (mm): 230×350
Min. Envelope Size (mm): 110×176
Paper Weights Ca (gsm):80-130
Total Power (kW):4.5
Max. Speed (pcs/h):8000
Machine Weight (kg):1200
Machine Size ((L×W×H) m): 2500×1050×1400
Max. Envelope Size (mm): 350×500
Min. Envelope Size (mm): 229×324
Paper Weights Ca (gsm):100-150
Total Power (kW):8.2
Max. Speed (pcs/h):6000
Machine Weight (kg):2500
Machine Size ((L×W×H) m): 3300×1160×1720

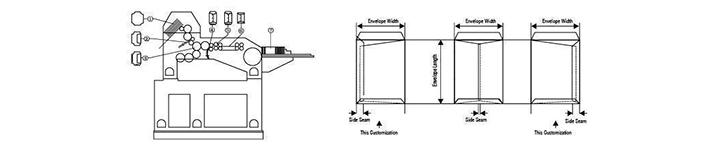

Illustration of Function
